| Oval gear flow meter china is widely used in China and other parts of the world. With the progress of technology, more and more industries begin to use Oval gear flow meter china products. | ||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
| The flowmeter is composed of a metering box and a pair of elliptical gears installed in the metering box, together with the upper and lower cover plates to form a sealed initial moon cavity (which is not absolutely sealed due to the rotation of the gear) as the calculation unit of primary displacement. When the measured liquid enters the flow meter through the pipeline, a pair of gears are driven to rotate continuously due to the pressure difference generated at the inlet and outlet, and the liquid measured by the moon shaped cavity is continuously transported to the outlet. The product of the rotation number of the elliptical gear and four times of the displacement each time is the total flow volume of the measured liquid (see the principle figure). The flowmeter is mainly composed of shell, counter, elliptical gear and coupling (including magnetic coupling and axial coupling). | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
|
The flow measurement has nothing to do with the flow state of the fluid, because the elliptical gear flowmeter is driven by the pressure head of the measured medium to drive the elliptical gear to rotate.
The larger the viscosity of the medium, the smaller the leakage from the gear and metering space gap. Therefore, the larger the viscosity of the testing medium is, the smaller the leakage error is, and the better the measurement is.
The elliptical gear flowmeter has high measurement accuracy, which is suitable for measuring the flow rate of high viscosity medium, but it is not suitable for the fluid containing solid particles (the solid particles will block the gear, so that the flow can not be measured). If there is gas in the measured liquid medium, the measurement error will also be caused.
|
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
|

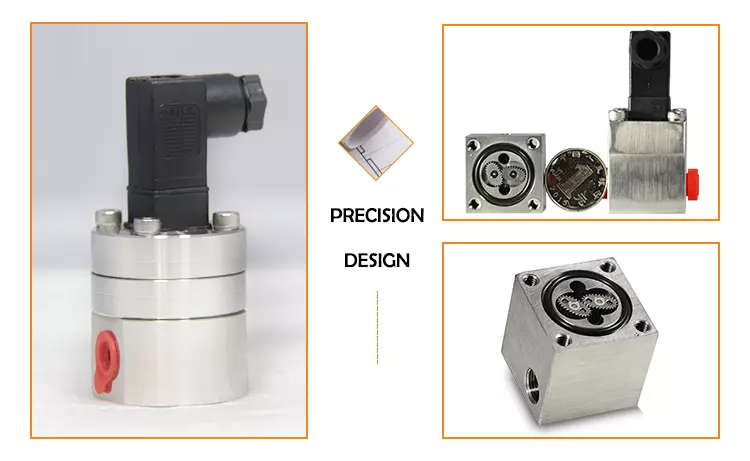

1. G Series Micro Flow meter(Positive gear) The G series diesel flow meter test bench is positive gear type flow meter,It with more higher resolution,The min pulse factor is 0.015ml/p and for high viscosity medium,,the performance is better than M series micro flow meter. |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
1. P Series Micro Flow meter(pps corrosive) The P series micro flow meter is suitable for corrosive liquid,the material is PPS(gear,bear,body).Min flow is 1 ml/min; |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
Oval gear flow meter china are hot products.Cixi flowmeter Co., Ltd. was established in 1986 and we have especially set up Shanghai Cixi Instrument Co. Ltd in order to handle the deals of Export and obtained the License of Export and Import in 2008.
Since 1986, Cixi flowmeter Co. Ltd has been dedicating itself to research and manufacture of various kinds of flowmeters and level meters. With sophisticated experience in technology and management, we has made a name for itself as an excellent manufacturer of various kinds of flowmeters and level meters.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there's liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
Our target is to serve our customers efficiently and innovatively in order to save their money and time. Any requirements from you will be responded in 24 hours.
|
