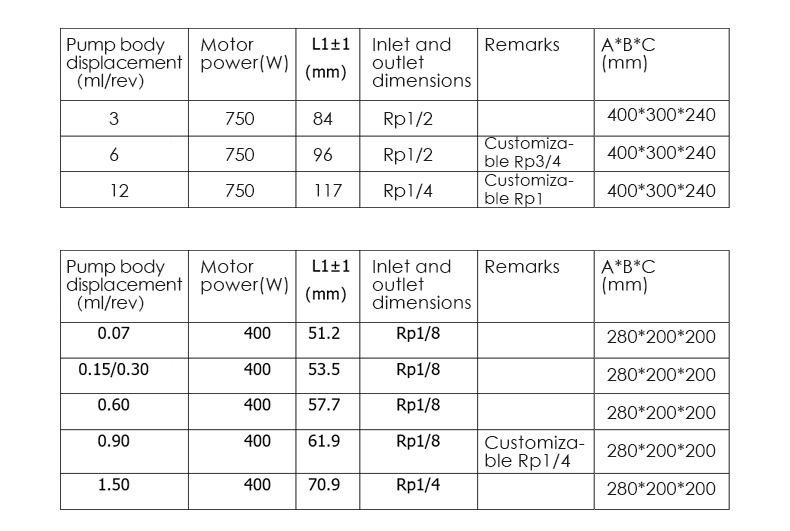

Pump body displacement（ml/rev） |
Motor power (W) |
L1±1（mm） |
Import and export size |
net weight(KG) |
Remark |
|
0.07 |
400 |
51.2 |
Rp1/8 |
|
|
|
0.15/0.30 |
400 |
53.5 |
Rp1/8 |
|
|
|
0.60 |
400 |
57.7 |
Rp1/8 |
|
|
|
0.90 |
400 |
61.9 |
Rp1/8 |
|
customizableRp1/4 |
|
1.50 |
400 |
70.9 |
Rp1/4 |
|
|
|
3 |
750 |
84 |
Rp1/2 |
12.9 |
|
|
6 |
750 |
96 |
Rp1/2 |
13.2 |
customizableRp3/4 |
|
12 |
750 |
117 |
Rp3/4 |
14.3 |
customizableRp1 |
technical parameter
1. Input power: AC220V
2. Rated power: 850W, 550W
3. Main technical parameters of gear pump
⑴Displacement 0.07 ml/rev, 0.15 ml/rev, 0.30ml/rev, 0.60ml/rev, 0.90ml/rev, 1.50ml/rev
⑵ Sealing material: PTFE/FFKM
(3) Pump body material: 316L stainless steel
(4) Working temperature: -30℃-70℃ (70℃-200℃ can be customized)
(5) Pressure difference between inlet and outlet: 8Bar (0.30Ml/rev)
(6) System pressure: 12Bar
(7) Applicable medium: most solvents, weak acids, weak bases
4. Main technical parameters of servo motor
⑴Power: 750W、○400W
⑵ Rotation speed: 0~3000 rpm
⑶Precision: 17-bit encoder
5. The main technical parameters of the quantitative system
⑴Working mode: quantitative mode, conveying mode
customizable
The operating user can choose to enter the corresponding Chinese or English operation page through the corresponding button at the bottom of the interface.
⑴Rated displacement: the rated displacement of the gear pump of the current system.
⑵Rated speed: the rated speed of the servo motor of the current system.
Quantitative mode
⑴ Number of turns setting: the number of turns of the motor in the quantitative mode. Theoretical turns=theoretical volume/rated displacement, for example: the rated displacement is 6.00ml/rev,
when the quantitative is 100ml, the theoretical turns=100/6 is 16.7 turns; when setting the turns, it can be adjusted up and down from 16.7 turns.
⑵ Rotation speed setting: the speed of the motor in quantitative mode, not higher than the rated speed.
⑶Interval time: the delay between each quantitative filling in automatic mode.
⑷Quantity setting: the total number of fillings in automatic mode, the machine will stop automatically when the set value is reached. If it is set to 0, it is manual mode, and the parameter setting is completed only once.
⑸ Quantity completed: The number of work completed in automatic mode or manual mode. Stop after reaching the set number in automatic mode, long press the stop button to clear the number.
Delivery mode
⑴Speed setting: the speed of the motor in conveying mode.
⑵Current speed: the real-time speed of the motor in conveying mode.
⑶ Setting time: the total running time set in the conveying mode, the machine will stop working when the time is up. If set to 0, it will keep running after starting.
⑷ Working time: the current running time of the conveying mode.
6. External control mode
