CIXIFM Gear Micro Flow meter

sales01@cxflowmeter.com

CIXIFM-Shanghai Cixi Instrument Co., Ltd is a high-tech limited company integrating R&D, production and sales. It mainly produces gear flow meters and metering pumps. The purity of the materials used is high, the accuracy is high, and the measurement range is wide.

Today, winny will mainly introduce to you the gear micro flow meter.

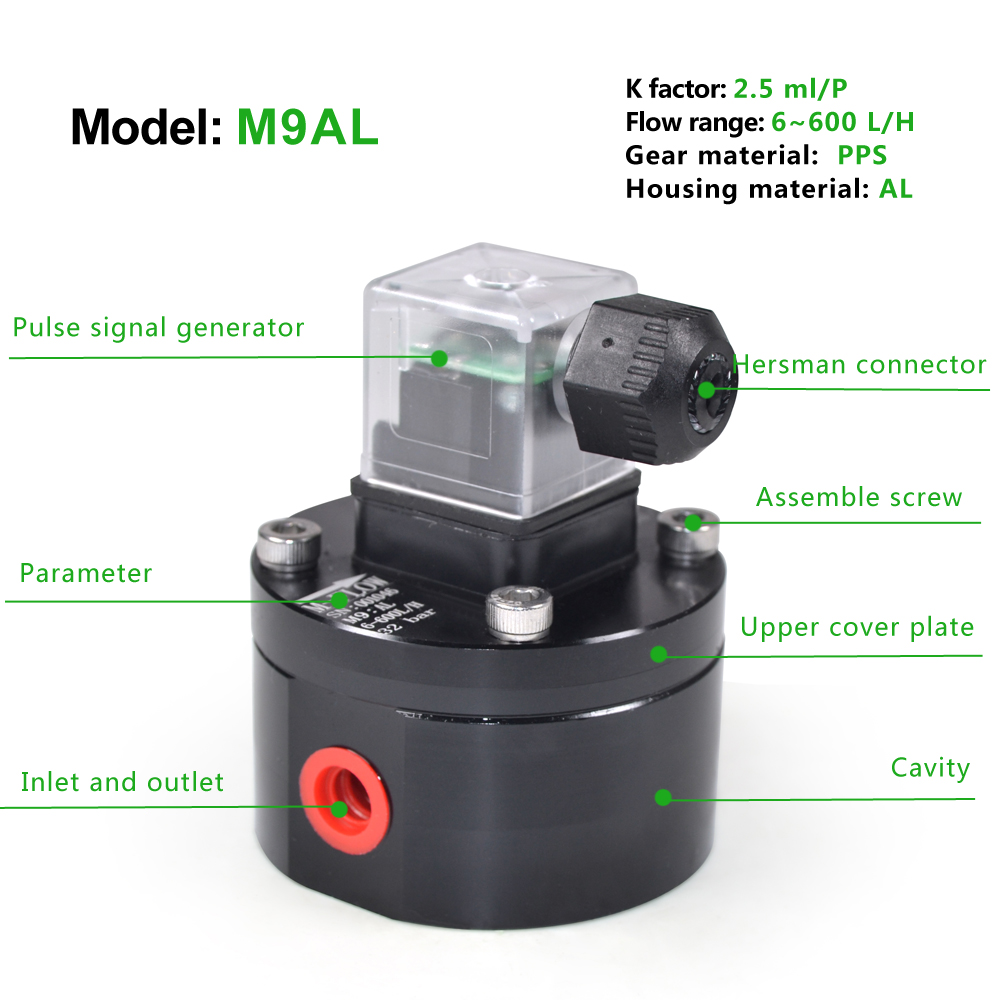

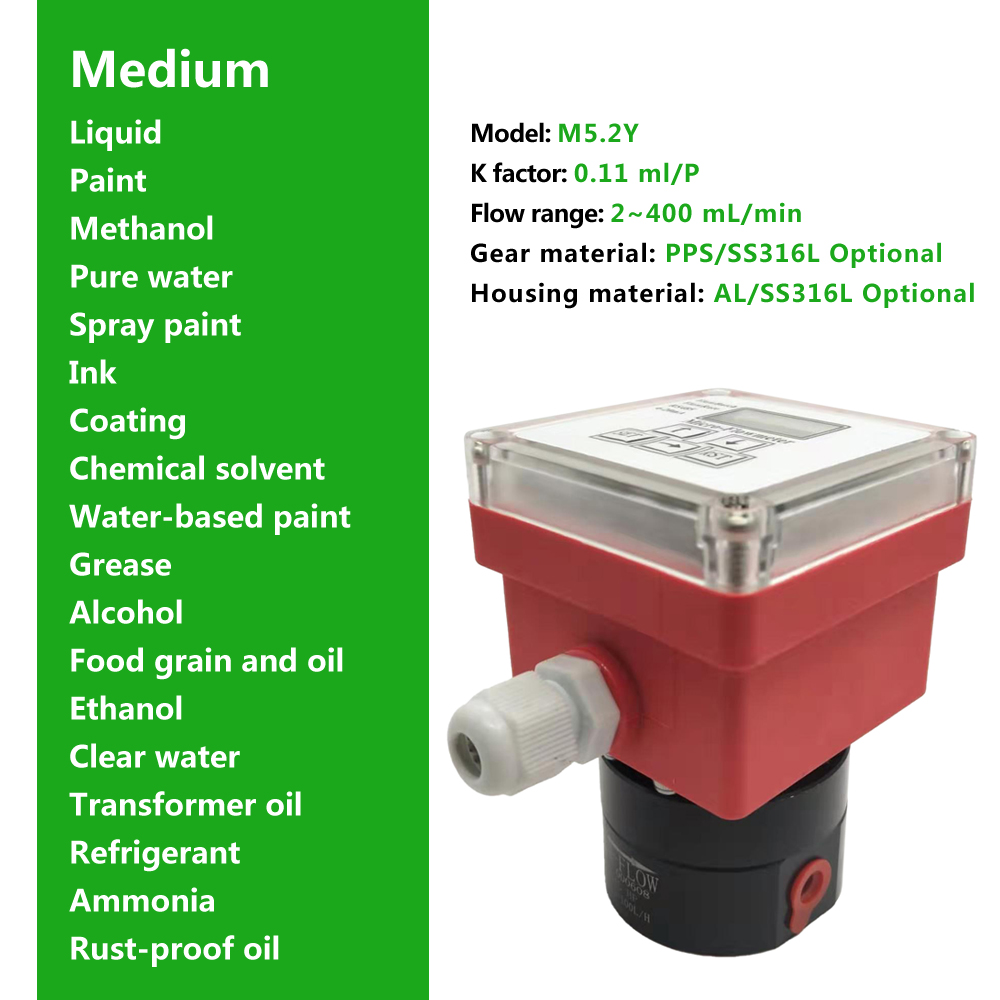

Our M series oval gear flow meter can be used to measure the small flow rate of all low-viscosity liquids, with high measurement accuracy and a wide range of applications. Easy to install and operate.
M series are mainly used in the measurement of lubricating oil, grease, and low-viscosity liquids. Measurable viscosity up to 1 million cP medium. Small vibration noise during working, convenient installation.

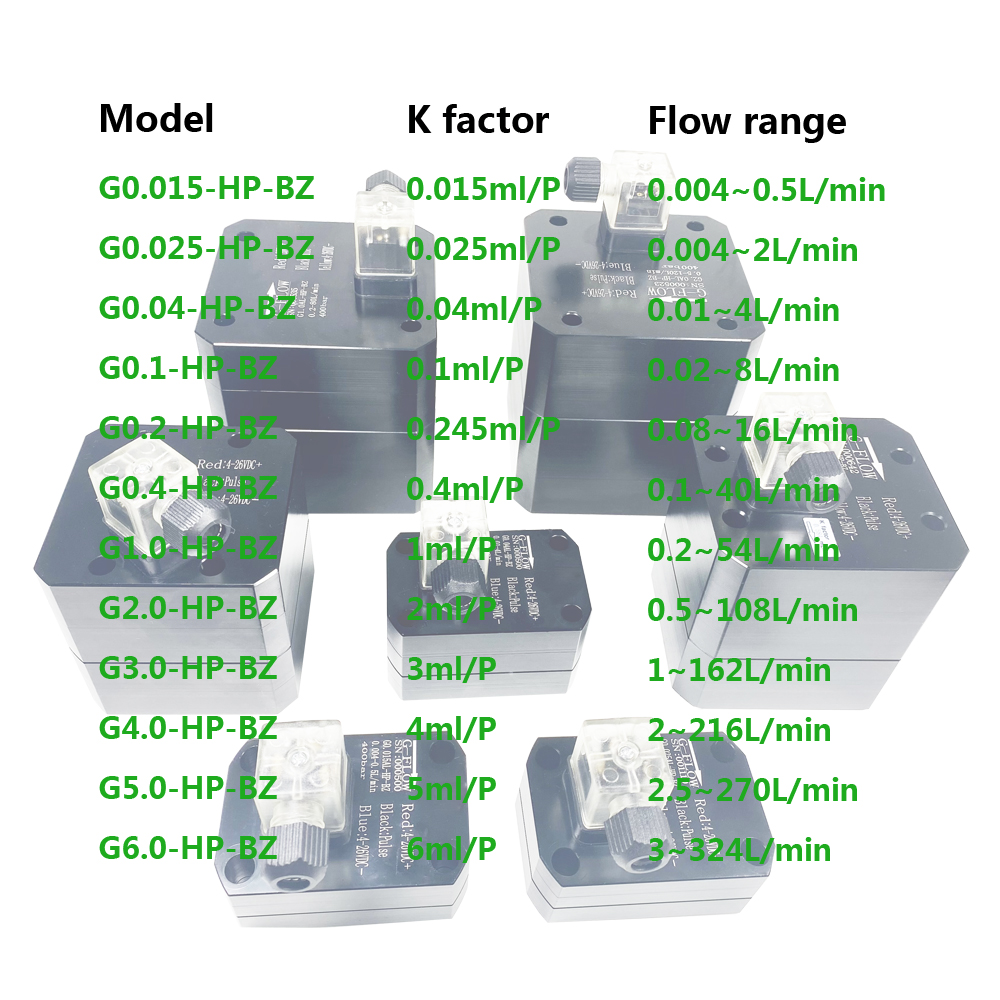

G series micro gear flow meters can be used to measure all liquids with high viscosity and low flow rate.



G series is mainly used for dispensing, gluing and quantitative two-component polyurethane glue,
aiming at high viscosity and high resolution flow detection. Measurable viscosity up to
1 million cP medium. Small vibration noise during working, convenient installation. For example, glue, Glue
Epoxy resin
Butter
3 m glue
Hydraulic oil
Paint
Glass glue
Lubricating oil
Curing agent
Coating
Gear oil
Stearic acid liquid
An unknown liquid
Chemical solvent
Asphalt
Silicone
Aqueous solution of poly (Vinyl alcohol)
One-component adhesive
Oil and grease
Polyurethane (pu)
Water
Frozen oil, etc.

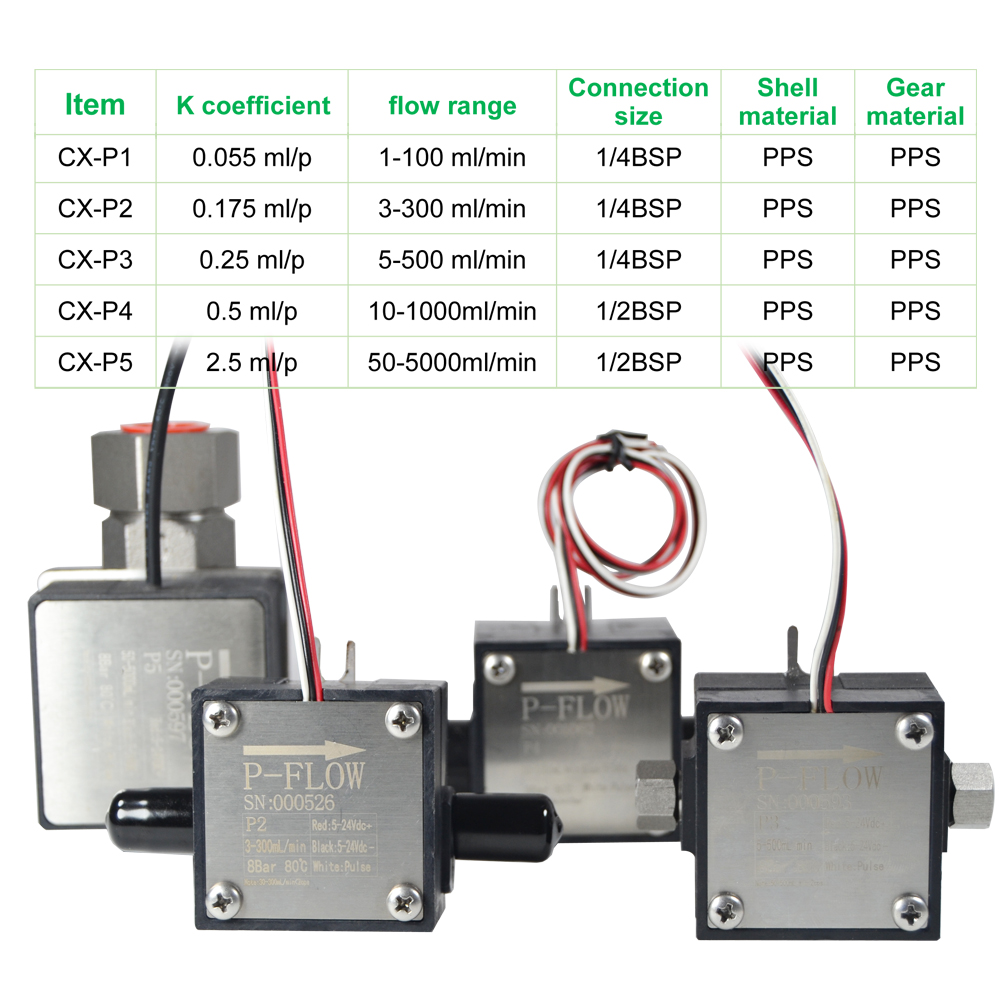

P series low flow meter can be used to measure all corrosive chemical liquids, corrosive solvents, etc.
Product Applications
The flow meters are all made of corrosion-resistant materials, resistant to acids, alkalis and various solutions, and are suitable for accurate metering of various chemical medium and low viscosity that cannot be in contact with metals such as stainless steel. Used in the chemical industry or reactor flow monitoring. Small vibration noise during working, convenient installation.
Medium:
Liquid
Chemical solvent
water
Water solvent
Degreaser.
22% sulfuric acid and water
Metal salts
Carbonic acid hydrogen ammonia
18% ammonia
ink
Phosphoric acid 85%
catalyst
An unknown liquid
potion
Oil additives
Water-based oil
hydraulic oil
Days that water
peroxide
refrigerant

sales01@cxflowmeter.com

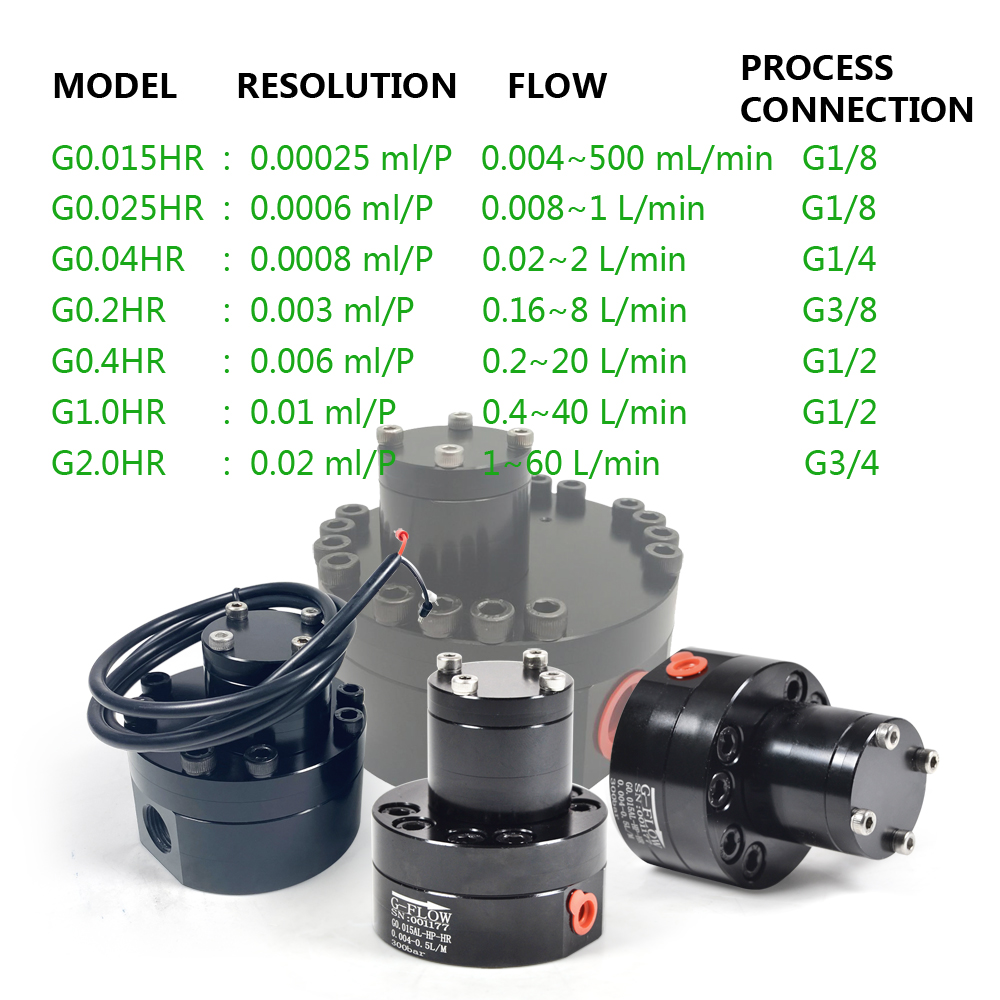

High resolution gear flow meter

For high viscosity medium, it is necessary to carry out precise measurement of trace liquid
under low resistance (pressure loss).
Even in the case of extremely slow gear rotation, a small amount of rotation can still give
enough pulse number.

Medium
Glue
Epoxy resin
Butter
3 m glue
Hydraulic oil
Chemical solvent
Asphalt
The silicone
Aqueous solution of poly
(vinyl alcohol)
One-component adhesive
Oil and grease
Polyurethane (pu)
Frozen oil
Grease
Industrial oil
Concentrate
Isolation agent
UV glue
Anaerobic adhesive
Glue
Hot glue
Hot melt adhesive
Defoaming agent
AB glue
Lime
Resin
Aviation kerosene
Sulfur
Oil
Battery glue
Sealant
Shampoo

sales01@cxflowmeter.com


High pressure plate mounting gear type flow meter

Low vibration and noise during
working, easy to install
Measurable viscosity up to:1000000cp
Measurement accuracy:0.5%
Wide measuring range up to 100:1
Power supply 5-26VDC
Working temperature:-40~100℃
Above 120℃ can be customized
Pressure : 400bar,
Above 400bar can be customized
Output signal: ultra high frequency square wave pulse output
Customized integrated display


Product applications

Plate mounting type high pressure positive displacement meter, used for continuous or intermittent
precision measurement of liquid in the pipe flow or instantaneous flow. Suitable for heavy oil, polyvinyl
alcohol, resin and other high-viscosity and high-pressure places, professional application in
polyurethane foaming machine industry, the precision can reach 0.5%, repeat accuracy is 0.2%,
accurate measurement of tiny flow in high-pressure situations;The installation size can be
compared with German Kracht VC series.

Medium
Glue
Epoxy resin
Butter
3 m glue
Hydraulic oil
Paint
Glass glue
Lubricating oil
Curing agent
Coating
Gear oil
Stearic acid liquid
Asphalt
The silicone
Oil and grease
Polyurethane (pu)
Frozen oil
Grease
Industrial oil
Concentrate
Isolation agent



All gear flow meter can be integrated display or with DC8Sremote digital display.4-20mA analog output, Modbus RTU 485 communication, cumulative alarm, instantaneous alarm, etc.



If you want to know more CIXIFM  oval gear flow meter, please consult winny:sales01@cxflowmeter.com
