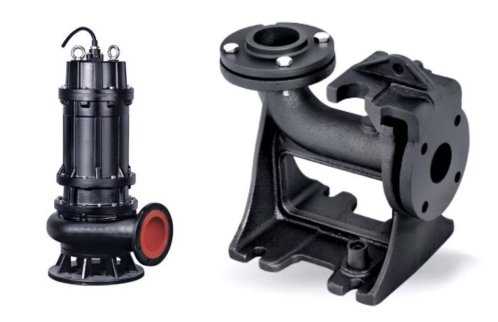

Pump Specifications: Drainage Pump with Oil-Water Sensor and Thermal Switch
Parameters
Product Number: 200W/3300-12-15
Construction Type: Vertical
Number of Stages: Single-Stage
Pump Type: Centrifugal
Pump Category: Submersible Pump
Number of Pumps: Single
Supply Voltage: 380/400 V
Maximum Flow Rate: 490 m³/h
Maximum Head: 21 m H2O
Rated Current: 26 A
Power Frequency: 50 Hz
Maximum Power Consumption: 15,000 W
Maximum Operating Pressure: 6 bar
Maximum Liquid Temperature: 40°C
Minimum Liquid Temperature: 0°C
Pipe Connection: Standard Flange
Pump Outlet Diameter: 200 mm
Application: Sewage Treatment
Anti-Clog Device: No
Motor Type: Oil-Immersed
Casing Material: Cast Iron
Impeller Material: Cast Iron
Insulation Class: F
Protection Rating: IP 98
Maximum Installation Depth, m 20
Symbol: VVQ
Includes inverter: No
Packaging dimensions (cm): 71.6 x 62 x 148.8
Net weight (kg): 334.5
After receiving the inquiry, our technician recommended our drainage pumps:
15KW direct liquid level start/stop, single control, three-control cabinet, with full protection
15KW direct liquid level start/stop, single control, four-control cabinet, with full protection
26A = less than 15KW
Model: 200WQ250-11-15
Power Supply: 380/400 V 50Hz Three-Phase
Maximum Flow Rate: 490 m³/h
Maximum Head: 21 meters of water column
Maximum Power Consumption: 15,000 W
Maximum Operating Pressure: 6 bar
Maximum Liquid Temperature: 40°C
Minimum Liquid Temperature: 0°C
Pipe Connection: Standard Flange
Pump Outlet Diameter: 200 mm
Fully Protected
Lightweight Coupling
Motor Type: Dry Type
Casing Material: Cast Iron
Impeller Material: Cast Iron
Insulation Class: F
Protection Rating: IP 98
Maximum Installation Depth: 20 m
Inverter Included: No
Pump Specifications: Drain Pump with Oil-Water Sensor and Thermal Switch.
If you have similar
drainage pump or submersible pump
sewage pump requirements, please contact CIXIFM Winny at:
Email: sales01@cxflowmeter.com
WhatsApp: 008618049841995
