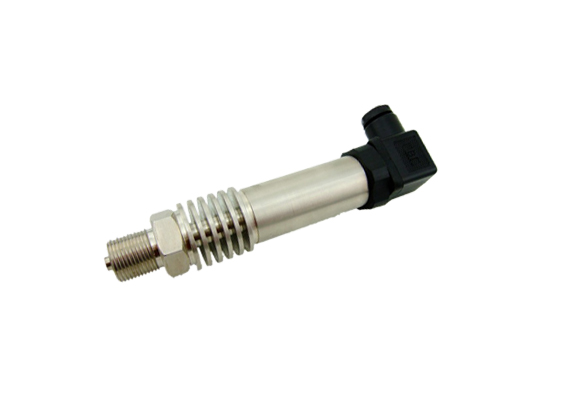

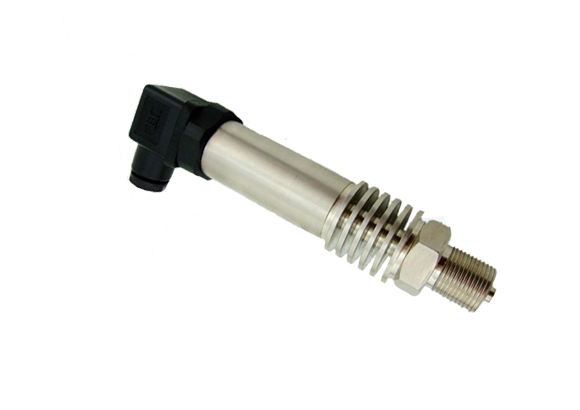

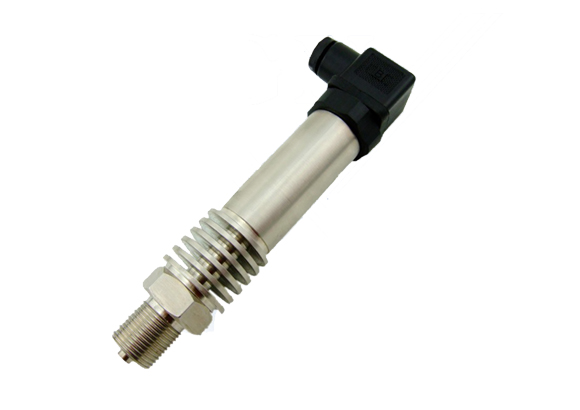

CXPTB101 series Pressure Sensor

CXPTB101 series Pressure Sensor

  • Pipe segment ultrasonic flow meter
    INQUIRY

    Brief introduction

    1.Used for measuring the gaugeand absolute pressure in liquids and gases

    2.Operates on the import silicon oil-filledmeasuring principle.the pressure is converted into an electricalsignal

    3.Application:Automotive industry,Oil and off-shore industry,Freon and ammonia refrigeration,Machine tools and automatic machinery,Standard hydraulic and pneumatic equipments,Engine monitoring and control,High side and low side air conditioning

    Main features

    1.Measuring ranges from 0~0.01 to 100 MPa

    2.High precision pressure transmitter

    3.Advanced silicon measuring technology

    4.Excellent accuracy and long term stability

    5.LED display can be selected



    Main parameters

Measuring ranges

0.01 to 100 MPa

Over pressure safety

2 X Rated range,the max pressure is 150MPa

Power supply

14-30V DC 10-30V DC

Output signal

l 0-10V 0(1)-5V / 4-20mA etc.

Electric connection

3-wire 3-wire / 2-wire

Burden

≥10 K Ω ≥5 K Ω / ≤( Ub-10V )/0.02A

Accuracy

≤ ± 0.5 % of span

Non – linearity

≤ ± 0.2 % of span

Repeatability

≤ ± 0.1 % of span

Pressure hysteresis

≤ ± 0.1 % of span

Long term stability

≤ ± 0.2% of span / year

Reference temperature

25 C

Operating temperature ranges

-30 ~ + 100 C

Compensated temperature range

0 ~ + 70 C

Thermal shift

≤ ± 0.25 % of span / 10K

Response time

≤ 2ms

Electromagnetic compatibility

EN 61 326

Process connection

G1/4-DIN3852,G1/4B-EN837,G1/2-DIN3852,G1/2B-EN837,1/4-18NPT,7/16-20UNF,G1/4(female thread)otherson customized

Process media

Stainless steel ,O-ring:NBR

Mechanical vibration

Max. at 20g,15-2000Hz(to IEC 68-2-6)

Mechanical shock

100g/1mesc to IEC 68-2-27

Enclosure rating

IP65 to EN 60 529,with DIN43650 connector,IP67 to EN 60 529,with cable,and m12x1 connector

Electrical connection

DIN43650,cable,m12x1(4-pole)connector

Cable length

2m,otherson customized

Nominal position

unrestricted




Technical data



Measuring ranges

0.01 to 100 MPa

Pressure reference

Gauge pressure,absolute pressure

Over pressure safety

2 X Rated range,the max pressure is 150MPa

Electrical specifications



Power supply

14-30V DC 10-30V DC

Output signal

l 0-10V 0(1)-5V / 4-20mA other signal outputs on request

Electric connection

3-wire 3-wire / 2-wire

Burden

≥10 K Ω ≥5 K Ω / ≤( Ub-10V )/0.02A

Performance specifications



Accuracy

≤ ± 0.5 % of span

Non – linearity

 ≤ ± 0.2 % of span

Repeatability

≤ ± 0.1 % of span

Pressure hysteresis

 ≤ ± 0.1 % of span

Long term stability

 ≤ ± 0.2% of span / year (at reference conditions)

Reference temperature

25 C

Operating temperature ranges

-30 ~ + 100 C

Compensated temperature range

0 ~ + 70 C

Thermal shift

≤ ± 0.25 % of span / 10K

Response time

≤ 2ms(≤ 10ms at medium temperature below <-30℃ for pressureranges up to 2.5MPa or with flush diaphragm)

Electromagnetic compatibility

EN 61 326

Physical specifications



Process connection

G1/4-DIN3852,G1/4B-EN837,G1/2-DIN3852,G1/2B-EN837,1/4-18NPT,7/16-20UNF,G1/4(female thread)other connections available on request

Process media

Stainless steel ,O-ring:NBR

Mechanical vibration

Max. at 20g,15-2000Hz(to IEC 68-2-6)

Mechanical shock

100g/1mesc to IEC 68-2-27

Enclosure rating

IP65 to EN 60 529,with DIN43650 connector,IP67 to EN 60 529,with cable,and m12x1 connector

Electrical connection

DIN43650,cable,m12x1(4-pole)connector

Cable length

2m,other length on request

Nominal position

unrestricted
