Summary

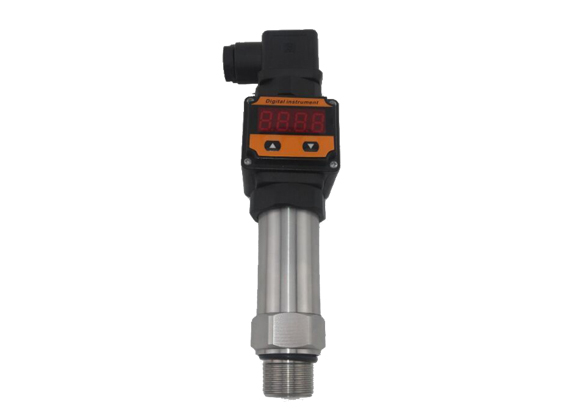

Pressure transmitter adopts with stainless steel isolation diaphragm piezoresistive sensor as signal measuring element,and through the computer automatic test,using laser trimming technology to process zero and sensitivity temperature compensation in wide temperature range.The amplifying circuit is located in a stainless steel casing,and the sensor signals are converted to standard output signal.The whole product is rigorously tested components, semi-finished and finished products and aging.
The products with good reliability,wide adaptability,product flexibility and diversity,widely used in petroleum, chemical, metallurgy field pressure, power, hydrology and other industrial process measurement and control.
Feature
316L stainless steel isolation diaphragm structure
The high precision, all stainless steel structure
The strong anti-interference, good long-term stability
The anti vibration, anti impact
It is suitable for measurement of normal temperature medium, can work stably for a long time
The form of diversification in structure, convenient in installation and use
The wide measurement range, can measure absolute pressure gauge pressure gauge pressure, and sealing
Technical Parameters
|
Measuring range |
-0.1-0~100Mpa |
Accuracy |
≤±0.5%FS |
|
Stability |
≤0.2% /year |
Overload |
200%FS |
|
Source range |
24V±20% |
Lead |
Hirschmann |
|
Protection grade |
IP65 |
Thread |
M20*1.5 |
|
Ambient temperature |
-10C-80C |
Temperature drift |
±0.02%FS/C |
|
Storage temperature |
-40C-85C |
Humidity |
0~80% |
