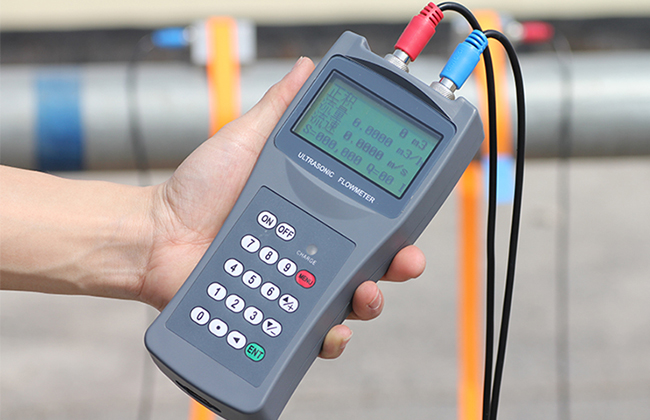

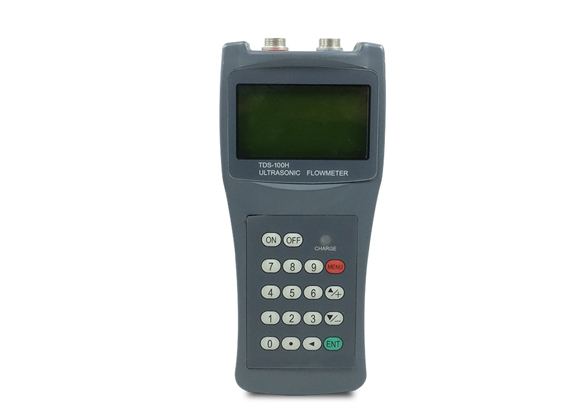

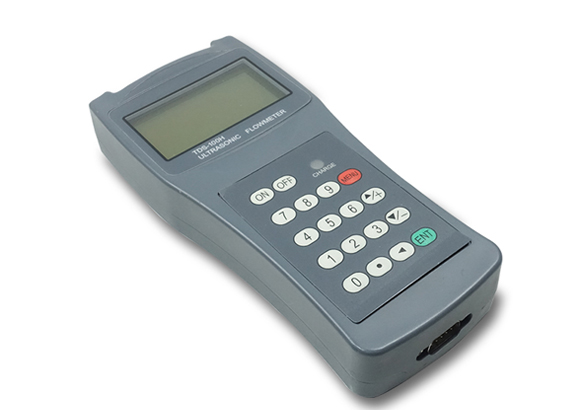

Handheld ultrasonic flow meter

Handheld ultrasonic flow meter

  •     DN15~DN6000 handheld ultrasonic flow meter.

        ISO,CE,SGS certificates for export

        More 80% meters for export

        9 consecutive years as gold supplier for export

        It's widely used to measure liquid flow in various industries .

    INQUIRY
    This is Brief introduction for handheld ultrasonic flow meter.
    1) DN15~DN6000 handheld ultrasonic flow meter.
    2) ISO,CE,SGS certificates for export
    3) More 80% meters for export
    4) 9 consecutive years as gold supplier for export
    5) It's widely used to measure liquid flow in various industries .
    6) Many advantages such as smart body, high accuracy, good repeatability,long-running cell,easy operation,built-in printer etc.
    7) The flowmeter is very popular in industry like petrochemical, water, power, energy monitoring etc.

    This is mainly features for handheld ultrasonic flow meter.
    1.Accuracy:±1%
    2.Repeatability:±0.2%
    3.Easy to install outside the pipe
    4.line display: Instantaneous flow rate,Accumulate flow,status
    5.Standard interface RS232 for data output and on-line operation
    6.Self-diagnose to show the current status

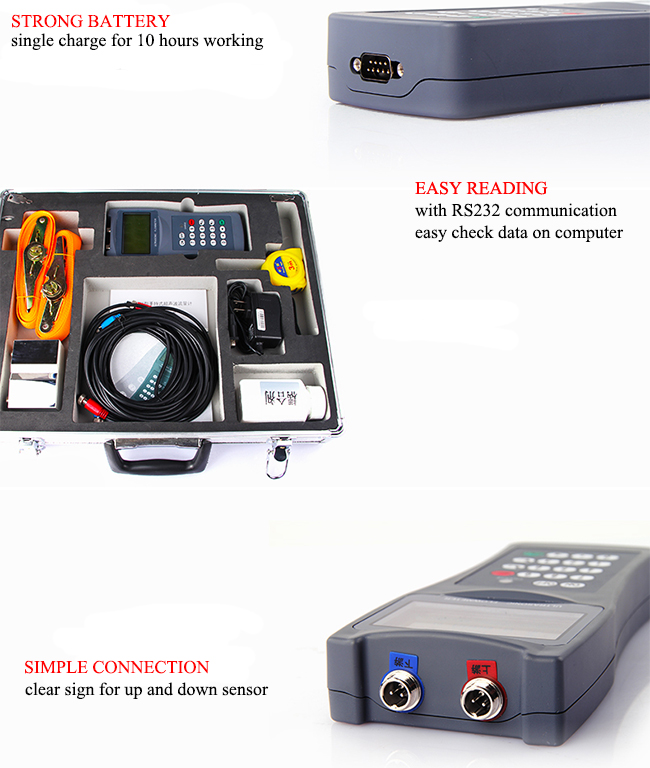

    7.Built-in Nickel-hydrogen cell supports 13 hours of operation

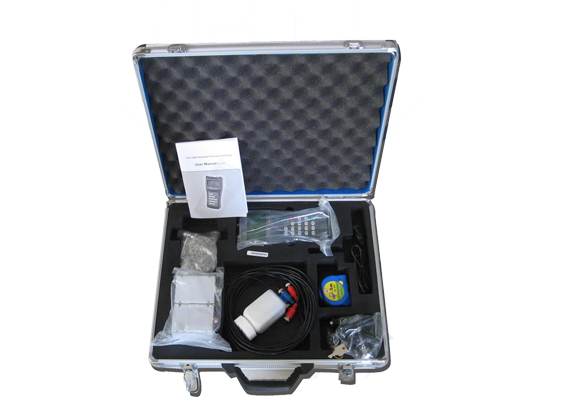

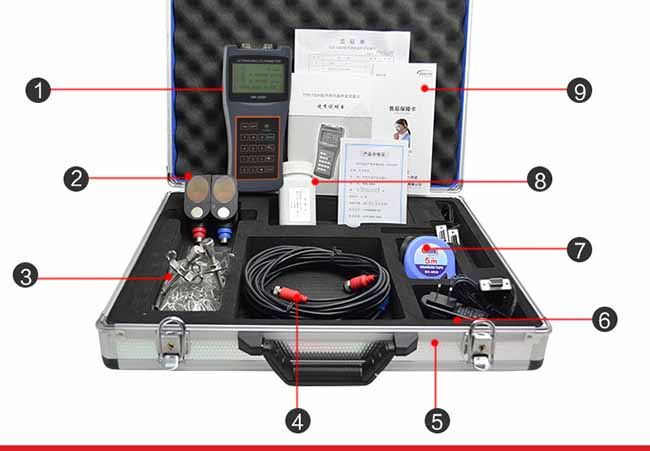

    This is the mainly component for handheld ultrasonic flow meter.
    1.Host: English display and large backlight LCD,NI-MH battery
    2.Sensor:standard clamp type and other for custmoized.
    3.Steel support chain for fixing.
    4.Sensor cables
    5.Work box:aluminium alloy material
    6.Battery charger.
    7.Flexible rule: standard 5 meters
    8.Coupling agent: fill the gap between sensor and pipe for accuracy
    9.Attached: QC certificate, service card, user manual and packing list.

We do Best in every details to produce Best handheld ultrasonic flow meter .

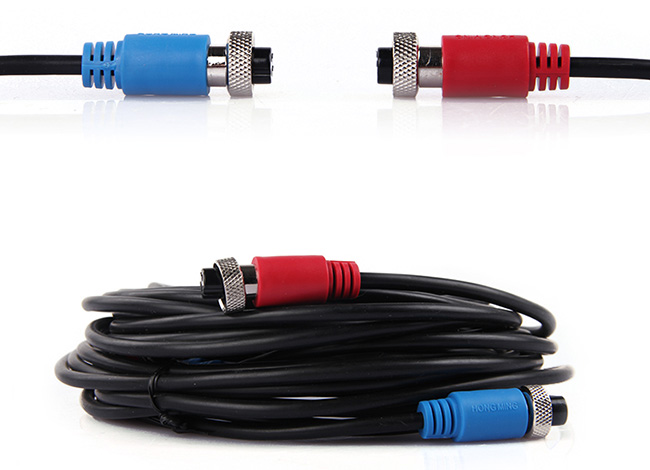

This is cable to connect transmitter with sensor for handheld ultrasonic flow meter

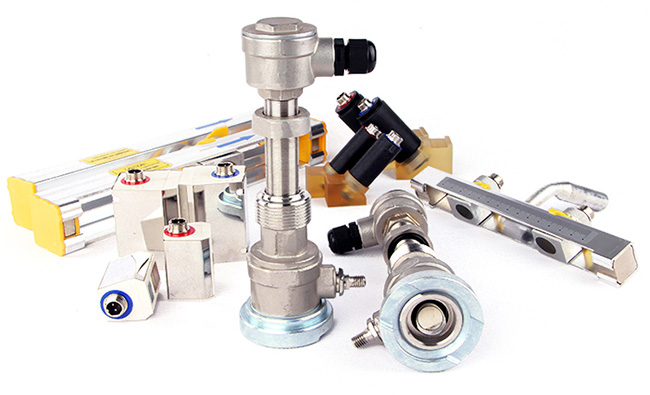

This is various sensors and support for handheld ultrasonic flow meter.

Data

S1Z

M1Z

S1

M1

L1

S1H

M1H

Pipe size

15-100

50-700

15-100

50-700

300-6000

15-100

50-700

Material

Aluminum Alloy

ABS

Special material for hi-temp

Frequency

1MHz

Installation

V(N,W)flange

V,Zflange

V(N,W)flange

V,Zflange

Zflange

V(N,W)Flange

V,Z flange

Calibration

Calibrated together with flowmeter

Magnetic

yes

no

Temperature

0°C-70°C

0°C-160°C

IP

IP65

Outsize

200×25×25

280×40×40

45×30×30

60×45×45

80×70×55

90×85×24

90×82×29

WT(g/pair)

250

1080

75

250

650

94

150

Medium

Water,sea water,sewage,Alcohol,oil etc

Turbidity

≤10000ppm with little air bubble

Pipe

Carbon steel stainless steel,cast iron,Brass,PVC,Aluminum etc.

Pipe inner

Rubber,Slurry,PP,PS,bakelite, PTFE

Signal cable

standard:5M×2,optinal:10M×2 or 15M×2...

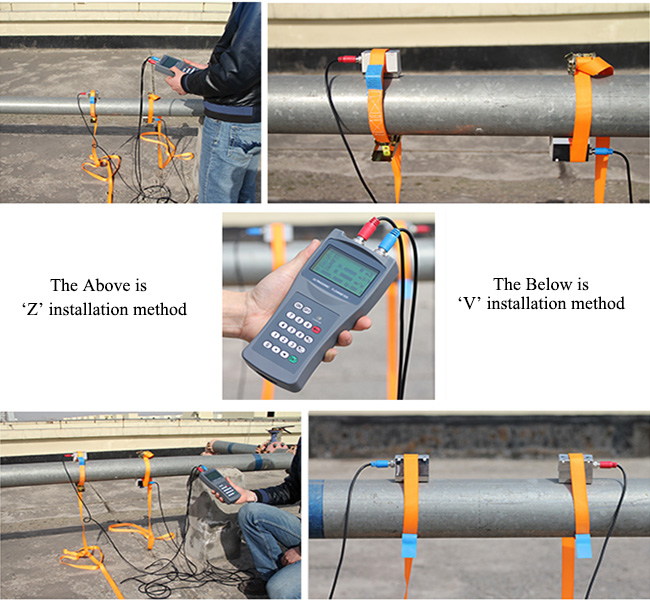

Below is installation sample of portable ultrasonic flow meter for your reference.
