Liquid Turbine Flow Meter

Liquid Turbine Flow Meter

  • Liquid turbine flowmeter can be used to measure all low viscosity non-corrosive liquids, such as water, beer,oil, gasoline, kerosene, diesel and so on. .

    Flow rate:0.04 ~800m3 / h

        Medium temp:-20 ~ +120 ℃

        Ambient tem:.-20 ~ +55 ℃

        Power supplyVoltage: +5-24 VDC, Current: ≤ 10mA

        Output:4 ~ 20mA two-wire

        Display:Local LCD indicator

        Explosion:No or yes (optional)


Below is brief instruction for Turbine flow meter
1.It can measure the liquid rate and total flow rate of low viscosity

2.Transmitting distance from sensor to display instrument up to 1000m.

3. Pressure loss is small, the impeller is anti-corrosion.

4. High accuracy and good repeatability

5.Vibration resistance and anti-electromagnetic interference
6.long working life and reliable performance and no zero drift

This is mainly technical Parameters for turbine flow meter
DN 4~200mm
Flow rate 0.04 ~800m3 / h
Medium temp. -20 ~ +120 ℃
Ambient temp. -20 ~ +55 ℃
Power supply Voltage: +5-24 VDC, Current: ≤ 10mA
Output 4 ~ 20mA two-wire
Display Local LCD indicator
Explosion No or yes (optional)
Accuracy 1%
Connection Thread(DN4-DN40),flange(DN50-DN200)
Max pressure 4.0Mpa(DN4-DN40),2.5Mpa(DN50-DN200)
Note:1)For DN4-DN10, sensor was equipped with straight pipe and filter.
          2)For sensor over DN15, straight pipe can be equipped per request.

We do Best in every details to produce Best Turbine Flow Meter

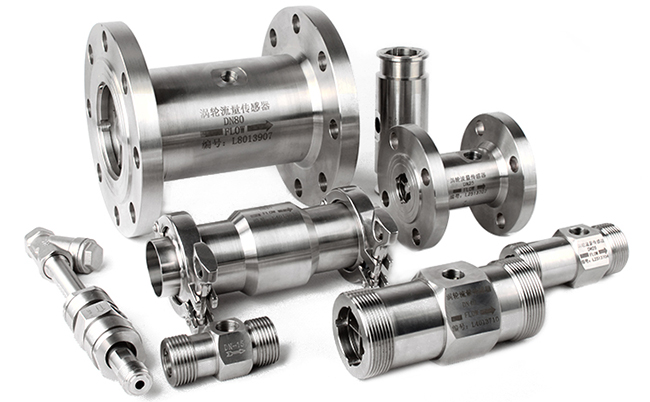

This photos is for various connection for Turbine flow meter

This is installation case of turbine flow meter for your reference.

This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license
