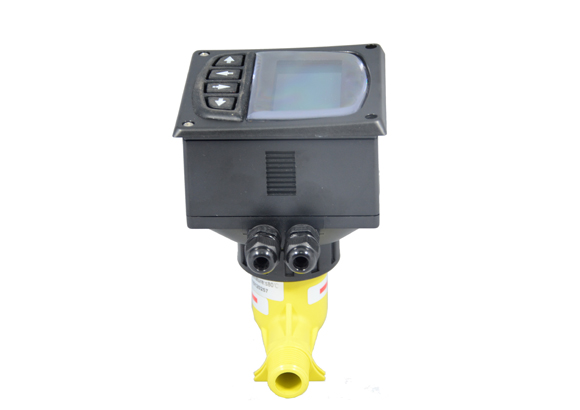

PTFM-XKF510 plastic turbine flowmeter

PVDFImpeller

Accuracy:+/-1%

O-ring material: EPDM

Output: pulse output,4-20mA output, local total&rate flow display.

Power supply:24VDC or 220VAC,battery supply.

INQUIRY

Introduction:
XKF510 series turbine flow meter is a kind of speed flow meter. It is widely used in measuring airproof pipe and continuous liquid flow. XKF510 apply to test liquid with low viscosity liquid, high precision, total and rate flow.

Technical Parameter:
PVDFImpeller
Accuracy:+/-1%
O-ring material: EPDM
Output: pulse output,4-20mA output, local total&rate flow display.
Power supply:24VDC or 220VAC,battery supply.

Main Feature:

DN(mm)	Flow range	Male thread	Working	Medium temperature	A(mm)	B(mm)
	(L/min)		Pressure	℃
10	1～10	G3/8"	1	<=80℃	150	120
	2～20
	3～30	G3/8"
15	2～20	G1/2"			150	130
	5～50
	7～70	G1/2"
20	3～30	G3/4"			150	135
	6～60
	10～100	G3/4"
25	7～70	G1"	0.8		150	150
	10～100
	20～200	G1"
40	15～150	G1 1/2"			160	180
	25～250
	40～400	G1 1/2"
50	15～150	G2"			160	180
	50～500	G2"
	70～700	G2"

Panel Type Installation / Powered By Battery

Feature of Inserted type
DN(mm)	Flow range	Working	Medium
DN(mm)	(m3/h)	Pressure(Mpa)	temperature
50	3～30	0.8	<=80℃
65	5～50
80	8～80
100	10～100
125	15～150
150	35～350
200	50～500
250	80～800
300	100～1000
