High pressure plate mounting gear type flow meter micro flow meter low flow meter glue flow meter polyurethane ABS plastic resin fluid flow meter

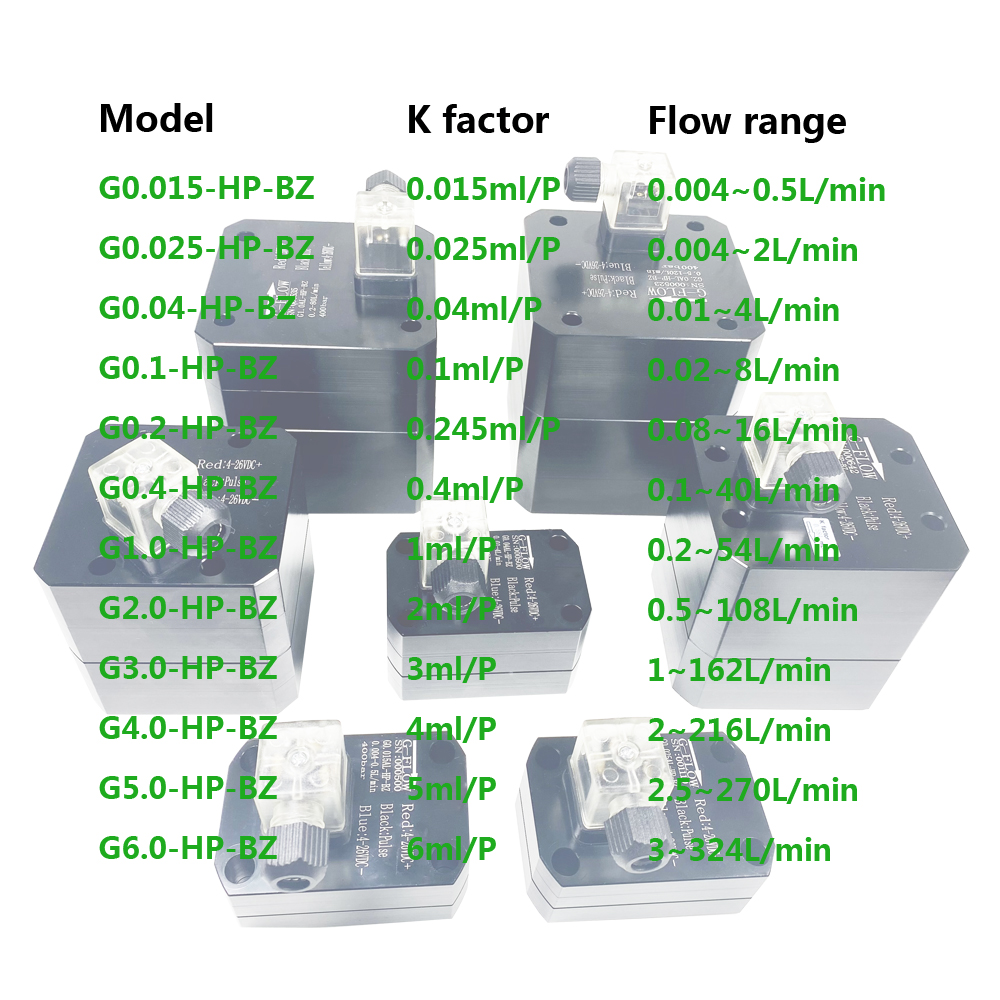

Model: G0.1-HP-BZK factor: 0.1 ml/PFlow range: 0.02~8 L /minGear material: SS316L(Standard) / 2205 / PPS Housing material: AL
Model: G0.2-HP-BZK factor: 0.245 ml/PFlow range: 0.08~16 L /minGear material: SS316L(Standard) / 2205 / PPS Housing material: AL
Model: G0.04-HP-BZK factor: 0.04 ml/PFlow range: 0.01~4L /minGear material: SS316L(Standard) / 2205 / PPS Housing material: AL
Model: G0.4-HP-BZK factor: 0.4 ml/PFlow range: 0.1~40 L /minGear material: SS316L(Standard) / 2205 / PPS Housing material: AL
Model: G0.015-HP-BZK factor: 0.015 ml/PFlow range: 0.004~0.5 L /minGear material: SS316L(Standard) / 2205 / PPS Housing material: AL
Model: G0.025-HP-BZK factor: 0.025 ml/PFlow range: 0.004~2 L /minGear material: SS316L(Standard) / 2205 / PPS Housing material: AL
Model: G1.0-HP-BZK factor: 1 ml/PFlow range: 0.2~54 L /minGear material: SS316L(Standard) / 2205 / PPS Housing material: AL
Model: G2.0-HP-BZK factor: 2 ml/PFlow range: 0.5~108 L /minGear material: SS316L(Standard) / 2205 / PPS Housing material: AL
Technical Parameters
Low vibration and noise during working, easy to installMeasurable viscosity up to:1000000cpMeasurement accuracy:0.5%Wide measuring range up to 100:1Power supply 5-26VDCWorking temperature:-40~100℃Above 120℃ can be customizedPressure : 400bar, Above 400bar can be customizedOutput signal: ultra high frequency square wave pulse output Customized integrated display
Product applications

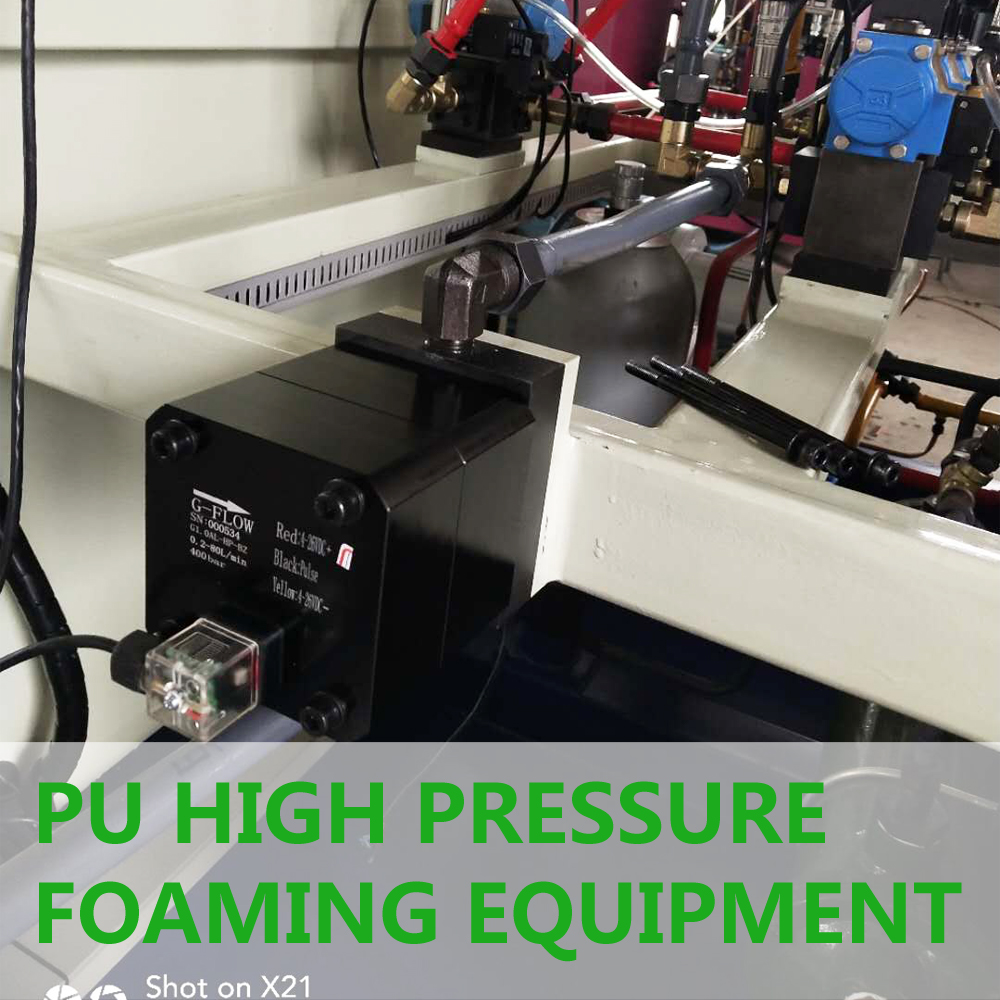

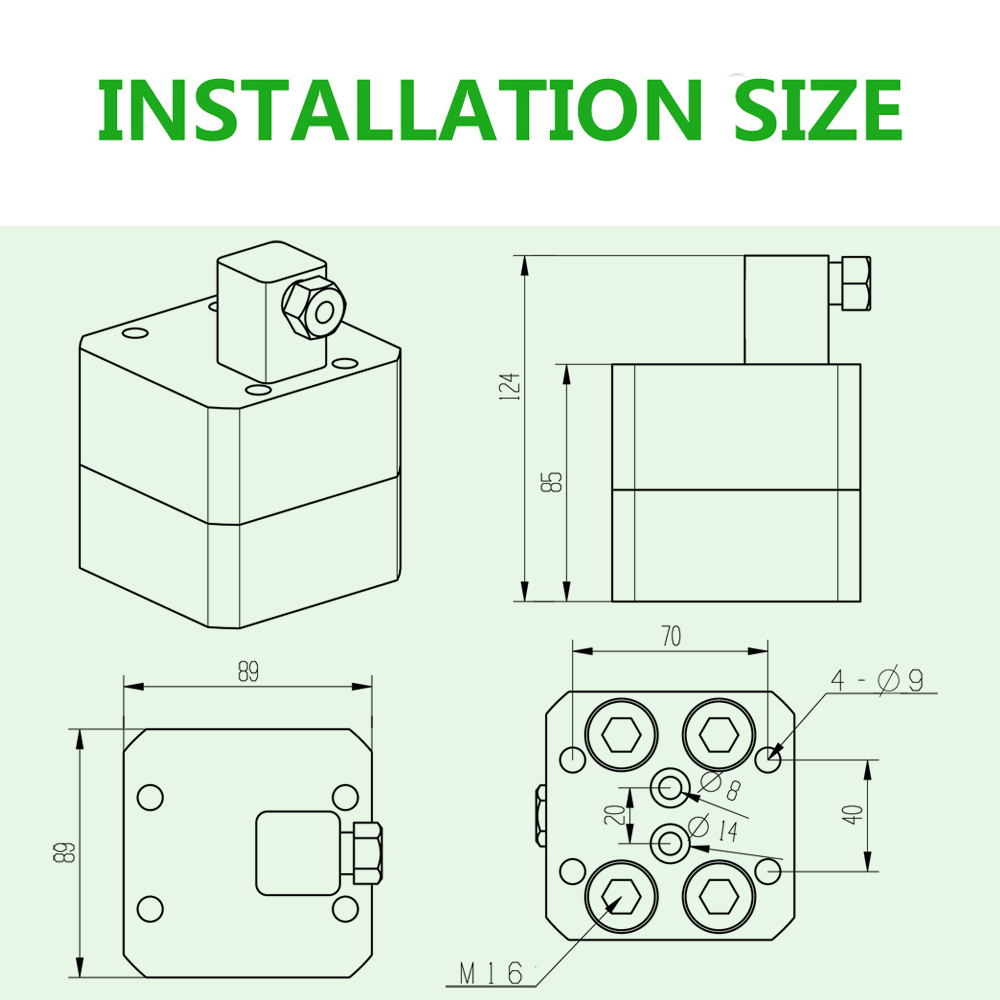

Plate mounting type high pressure positive displacement meter, used for continuous or intermittent precision measurement of liquid in the pipe flow or instantaneous flow. Suitable for heavy oil, polyvinyl alcohol, resin and other high-viscosity and high-pressure places, professional application in polyurethane foaming machine industry, the precision can reach 0.5%, repeat accuracy is 0.2%, accurate measurement of tiny flow in high-pressure situations;The installation size can be compared with German Kracht VC series.
