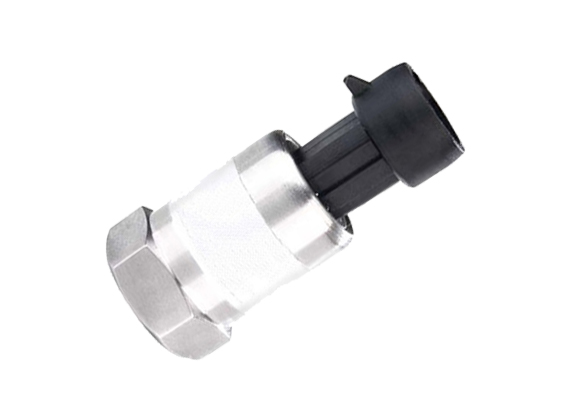

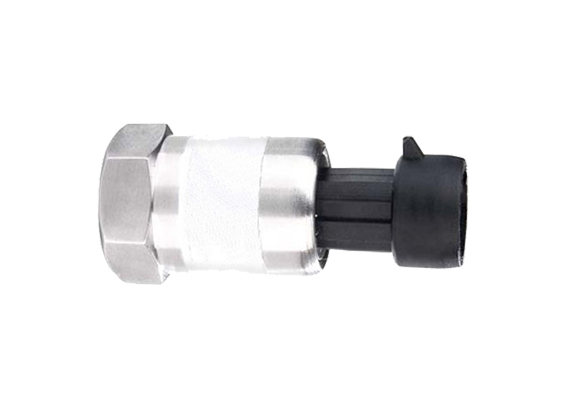

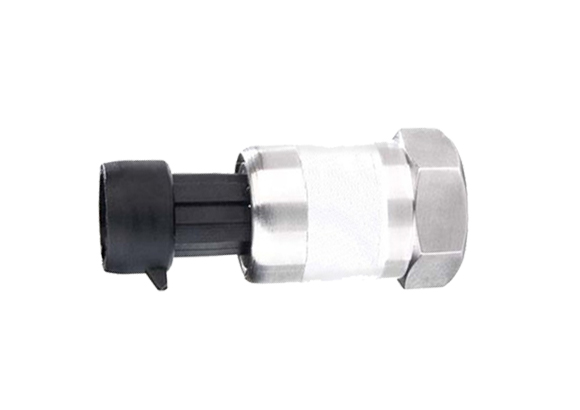

CXPTB-231 air-condition, compressor pressure transmitter

Valveless plunger pump ceramic valveless metering pump

Product performance

High precision ceramic positive displacement plunger type metering

Simple structure, quick disassembly and assembly

Steam, high temperature, negative pressure, sterilization

Protects against chemical reactions and is suitable for most fluids

Acid and alkali resistance, corrosion resistance, high temperature resistance, wear resistance

High hardness and long service life

The best choice for filling and measuring extremely small amounts of liquids

INQUIRY

Brief introduction

1.The electronic automotive sensor with the feature of compact configuration, high reliability, easy to install, vibration proof and all-metal sealed pressure system which withstands more than 10 million pressure cycles without failure.

2.This series is used to measure the pressure of engine oil, brake system, fuel, diesel engine high-pressure common rail test system in the automotive industry. It can also be used to measure the pressure for liquid, gas and steam.

3.Application:Engine oil,ABS system,Fuel pump,Fuel cylinder high-pressure common rail system,Automotive & air-condition pressure measuring.

Main features

1.Superior long term stability

2.Temperature compensated over wide range

3.Low power consumption

4.Excellent repeatability/Hysteresis

5.Special design for customer

6.Many OEM options

Main parameters

Range	0….1bar to 0….60bar
Accuracy	0.5%FS ; 1%FS
Nonlinearity	0.02%FS
Reliability	0.05%FS
Output	0.5-4.5V; 0-5V ; 1-5V; 4-20mA,
Input voltage	5VDC, 24(12-36V)DC
Operating Temperature	-20C-100C
Compensated temp	-10~65℃(Standard Compensation)
Overload pressure	150%FS
Material	304 SS
Electric connector	Special Packard connector
Process connector	1/4NPT, 1/8-27NPT, 7/16-20UNF (Optional)
