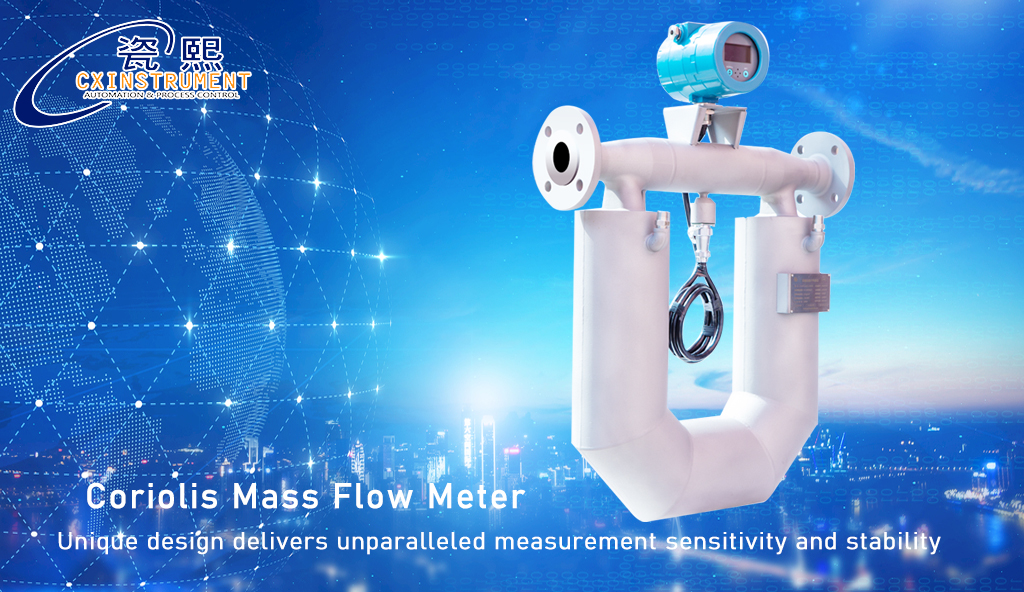

coriolis mass flow meter performance

Cmfi series mass flowmeter is a new type of flow meter developed by our company according to the principle of Coriolis force by introducing foreign advanced technology. It can directly measure the mass flow of fluid in closed pipe. It is composed of flow measurement sensor and signal converter.
This is coriolis mass flow meter performance.


Specifications
Table of Technical Specifications (Table 1)
Titles                       Technical Specifications
Mass flow accuracy ±[0.2% +(zero stability /flow rate×100%)]
Mass flow repeatability ±(1/2) ×[0.2% +(zero stability /flow rate×100%)]
Density range 0.2 g/cm3~3.5g/cm3
Density accuracy ±0.002g/cm3
Temperature range -60℃~+200℃
Temperature accuracy ±1℃
Output of current loop 4mA~20mA
Output of frequency/pulse 0Hz~10kHz
Contactor capacity of a Batch
Control relay
24V/0.1A
Contactor form normal open


Other Specifications
Environmental Specifications (Table 2)
Titles Specifications
Temperature range of fluid -40℃~+200℃
Environmental temperature range 0℃~+40℃
Environmental humidity ≤90% RH, non condensation
Atmospheric pressure range 86kPa~106kPa
Power supply of transmitters Essential safety Voltage: AC(220±10%)V,(50±5%)Hz
Composite Voltage: DC (24±10%)

CAD of Vegetable Oil Coriolis Mass Flow Meter
Spec
Line Size(mm)
Fitting Options(mm)
Connection size
Weight(kg)
A
B
C
D
DN1
13
193
200
75
234
M12*1.5 Screw join
4
DN3
3
193
225
75
288
M12*1.5 Screw join
4.5
DN6
6
214
234
69
328
M16*1.5 Screw join
7.5
DN10
10
256
291
73
370
M20*1.5 Screw join
9
DN15
15
413
503
90
φ65
4-φ14
15
DN25
25
473
548
96
φ85
4-φ14
18.5
DN40
40
522
613
116
φ110
4-φ18
25.5
DN50
50
597
676
137
φ125
4-φ18
35
DN80
80
650
837
175
φ160
4-φ18
53.5
DN100
100
714
934
198
φ190
4-φ22
70
DN150
150
815
1123
265
φ250
4-φ26
80
