Self-Priming Centrifugal Pump for Chemical Liquids – 80HZ50-30
A client recently asked us for a self-priming chemical centrifugal pump – not a standard end-suction type.

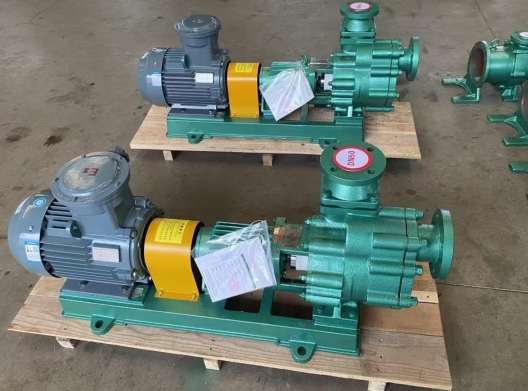

After reviewing the requirements, we recommended the CIXIFM 80HZ50-30.
Duty point
Flow: 50 m³/h
Head: 30 m
Speed: ~2900 rpm
Power: 11 kW, 2-pole, Ex d IIB T4 (380V/50Hz)
Key features
SS304 wetted parts (SS316 optional)
DN80 inlet/outlet
Horizontal, end-suction, self-starting
Dual mechanical seal (tandem) + seal cooling pot
Temperature sensor + liquid level indicator
This configuration ensures continuous and reliable operation with chemical liquids.
Why self-priming?
A standard end-suction pump does not work here.
The self-priming design removes air from the suction line automatically – no foot valve, no manual priming.
Deliverables provided to customer
Model confirmation: 80HZ50-30
QH curve (performance curve)
GA drawing (dimensions)
Weight, delivery time, EXW / FOB price
Bottom line
If you need a self-priming
chemical pump at 50 m³/h and 30m head with explosion-proof motor and tandem mechanical seal, the 80HZ50-30 is a solid choice.
