Target flow switch
Today a customer asked about the flow switch. He provided the following information and hoped that we could recommend
the most suitable flow switch for him:
Connection: 1-inch external thread.
Applicable to pipes from 1 inch to 8 inches.
Maximum working pressure: 10 bar.
Maximum flow temperature: 110℃.
Storage temperature: -20℃ - 80℃.
Rated voltage/current: 24VAC/10A.
Protection level: IP54
Coated steel housing
Brass connector
Blade: Stainless steel
Waterproof bellows: Copper-zinc alloy.
After our technicians checked it, they recommended our model to him

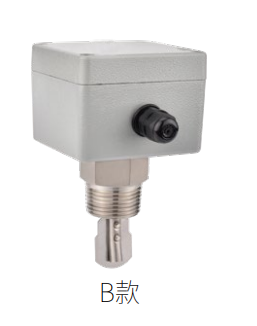

CX-FS-FB11 target flow switch
Target switch (baffle)
-Repeatability: ±2.5% of total range
-Wiring method: Terminal wiring
-Output: switch normally open + normally closed (250VAC, 3A 24VDC)
-Pressure resistance: 40bar (stainless steel)
-Average pressure loss: 0.08bar (at maximum flow)
-Ambient temperature: -25~80℃
-Medium temperature: stainless steel material 180℃
-Interface thread: R1 external thread
-Protection level: IP67
-Material: Body: stainless steel
-Casing material: engineering plastic/zinc alloy
Process connection: stainless steel
-Baffle: stainless steel
If you also have flow switch selection needs, please consult CIXIFM winny:
