Best Choice Wholesalers flow meter for fuel tanker

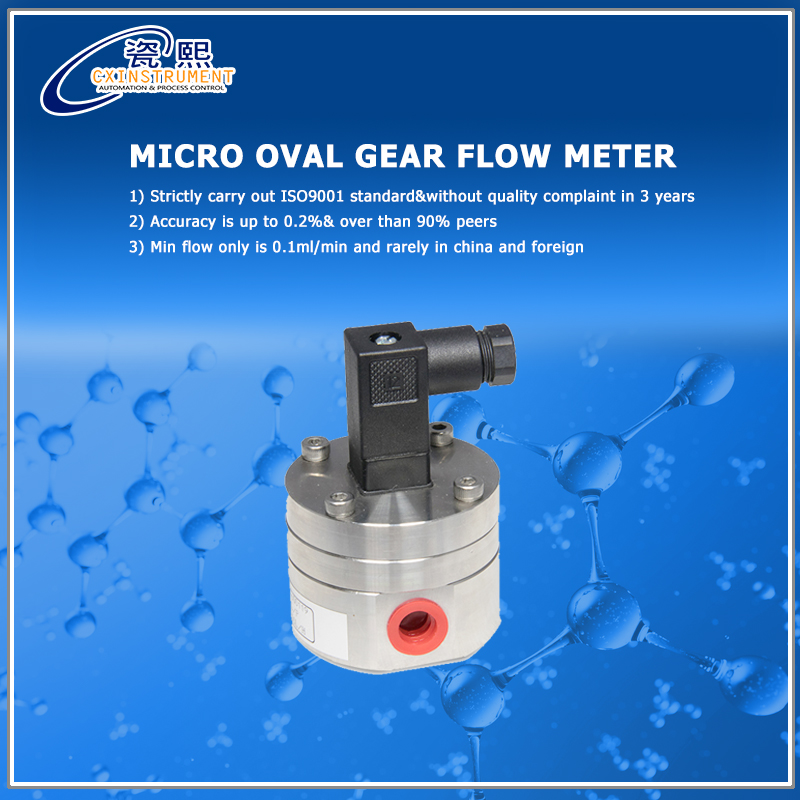

What's the introduction of Hydraulic Heavy Oil Flow Meter?
Hydraulic Heavy Oil Flow Meter is a kind of oval gear flow meter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce oval gear flow meter. but only several manufacturer who have technology to produce micro liquid flowmeter.

Hydraulic Heavy Oil Flow Meter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years.
Hydraulic Heavy Oil Flow Meter is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing,natural gas odorization.

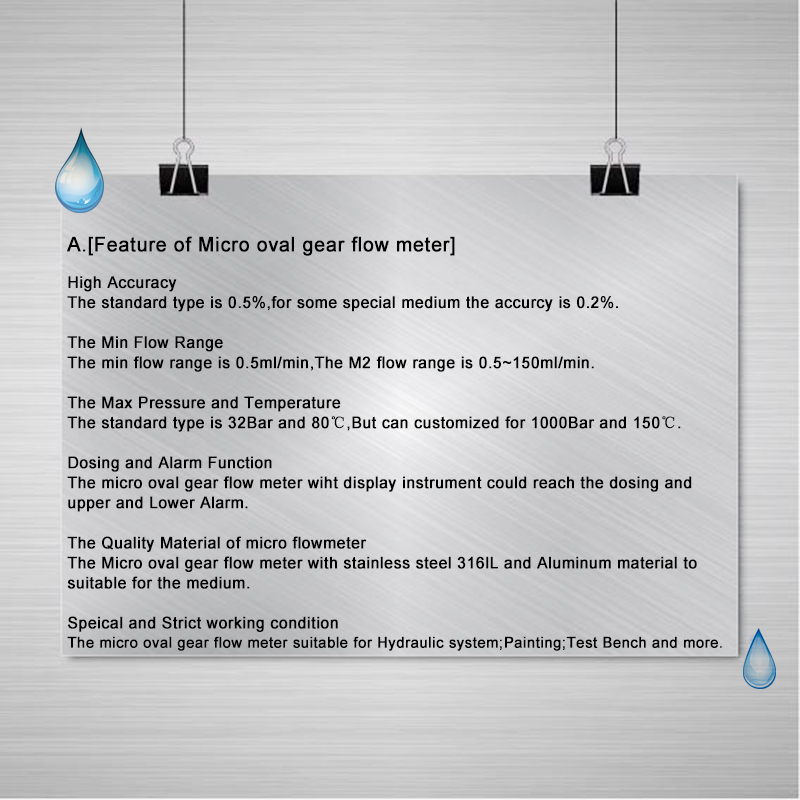

What's the main features of Hydraulic Heavy Oil Flow Meter?
1) Anti-dust,anti-vibration,anti-corrosive&explosion-proof.
2) Max accuracy up to 0.2%
3) Min flow : 0.1ml/min
4) Max temperature: 200C
5) Max pressure: 1000bar
6) Viscosity liquid:0.3~10000cps.
Product Overview
B.[Parameter]
Model
Flow Range
Connection
CX-M2-SS/AL
0.5~150 ml/min
NPT/G 1/8''Female thread
CX-M3-SS/AL
3~300 ml/min
NPT/G 1/8'' Female thread
CX-M5-SS/AL
5~1000 ml/min
NPT/G 1/8'' Female thread
CX-M6-SS/AL
0.5~100 L/H
NPT/G 1/4' Female thread
CX-M9-SS/AL
6~600 L/H
NPT/G 1/4'' Female thread
CX-M12-SS/AL
0.3~30 L/Min
NPT/G 1/2'' Female thread
CX-M25-SS/AL
0.5~100 L/Min
NPT/G 1'' Female thread
Test Bench flowmeter
1~800 ml/min
NPT/G 1/8' Female thread
Accuracy
The standard type is 0.5%,some special medium is 0.2%
Temperature
-40~80℃(the max temperature is 150℃)
Pressure
32Bar (the max pressure 1000Bar)
Output
The putput is pulse output
Power Supply
4~26VDC
-SS series

Material
Chamber:SS316 ; Gear;SS316L ;Shaft:SS316L
Medium
Suitable for various chemical liquid
-AL Series

Material
Chamber:Aluminium ; Gear:Aliuminium ;Shaft:SS316L
Medium
Suitable for Non-various chemical liquid
The flow meter for fuel tanker  shall avoid ferromagnetic objects and equipment with strong electromagnetic field (such as large motor, large transformer, etc.), so as not to affect the working magnetic field and flow signal of the sensor. Flow signal line and excitation line between sensor scoop converter. However, from the analysis of damaged parts in lightning fault, most of the induced high voltage and surge current are introduced from the power line of control room, and the other two ways are less. Because electromagnetic flowmeter has more chances to measure suspended solids or dirty bodies than other flow meters, the failure probability of inner wall adhesion layer is relatively high. If the conductivity of the adhesive layer is similar to that of the liquid. The common faults during commissioning period are usually caused by improper installation.
