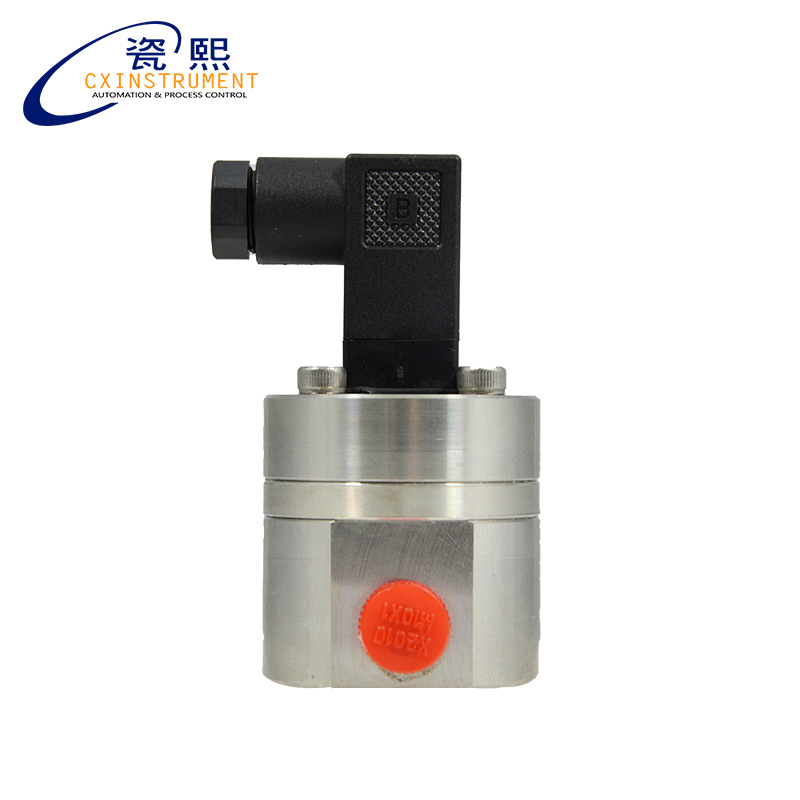

industrial oval gear flow meter

Industrial oval gear flow meter (also known as displacement flowmeter, gear flowmeter) belongs to a kind of volumetric flowmeter, which is a kind of high precision flow meter. It uses mechanical measuring elements to continuously divide the fluid into a single known volume part, and measures the total flow volume according to the number of times that the metering chamber fills and discharges the fluid in the volume part successively and repeatedly. Elliptical gear flowmeter can be made of different materials (cast iron, cast steel, 304 stainless steel, 316 stainless steel). It is suitable for flow measurement in chemical, petroleum, pharmaceutical, electric power, metallurgy and food industries.
  • Min flow is 0.5ml/min for oil; 1ml/min for water
  • The standard type accuracy is 0.5%
  • Stainless steel 316L;Aluminium;PPS material for corrosive medium
  • Cooperate with DC8S display instrument to composite a dosing system
  • Customized for high pressure(Normal is 32Bar) It's usually used for hydraulic system
  • With small size body and easy installation
  • The Max flow ratio is 1:800(1~800ml/min for test bench);normal type is 1:200
Medium  Suitable for liquid,weak corrosive chemical liquid,eg:water;oil;glue...
 Accuracy  Standard type is 0.5%
 Pressure  32Bar and customized high pressure
 Temperature  -30~80℃,Max temperature is 120℃
 Output  Pulse output
 Power  4-26VDC power supply
 SS Series__
 Material  Body:SS316L
   Gear:SS316L
   Bear:SS316L
 Medium  Suitable for water and corrosive medium
 AL Series__
 Material  Body:Aluminium
   Gear:Aluminium
   Bear:SS316L
 Medium  Non-corrosive liquid,oil;glue
Model Flow Range Connection  K factor
 CX-M2 0.5~150 ml/min  G1/8'' Female thread 0.06 ml/p
 CX-M3 3-300 ml/min  G1/8'' Female thread 0.14 ml/p
 CX-M5 5-1000 ml/min  G1/8'' Female thread 0.36 ml/p
 CX-M6 0.5-100 L/h  G1/4'' Female thread 1 ml/p
 CX-M9 6-600 L/h  G1/4'' Female thread 5 ml/p
 CX-M12 0.3-30 L/min  G1/2'' Female thread 17.5 ml/p
 CX-M5.1  1-800 ml/min  G1/8'' Female thread 0.3 ml/p
1/2" SS304 micro liquid oval gear flow meter
MODEL/SIZE  M2  M3  M5   M2  M3  M5(high pressure)  M6 M9 M12
A 30 30 40  47  56
B 62 62 72  79  91
C G1/8'' G1/8'' G1/4''  G1/4''  G1/2''
D 40 50 50  60  85
E M5*31 M5*31 M5*40  M5*52  M5*72
Industrial oval gear flow meter is one of the volumetric flow meters, which is used to measure the liquid flow or instantaneous flow in the pipeline continuously or intermittently. It is especially suitable for the flow measurement of heavy oil, polyvinyl alcohol, resin and other media with high viscosity. The elliptical gear flowmeter uses mechanical measuring elements to continuously divide the fluid into a single known volume part, and the total volume of fluid is measured according to the number of times the metering chamber fills and discharges the volume part of the fluid successively and repeatedly.
